รายละเอียดสินค้า
Place of Origin: Jiangsu
ชื่อแบรนด์: YUSH
ได้รับการรับรอง: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: YS-320Y/ YS-320YT
เงื่อนไขการชำระเงินและการจัดส่ง
Minimum Order Quantity: 1set
ราคา: USD18000
Packaging Details: wooden case
Delivery Time: 3-5dyas
Payment Terms: L/C, D/P, T/T, Western Union,Paypal
Supply Ability: 100set
Applicable PCB board size: |
L*W : 50×50～320×250 mm |
Applicable PCB board size Applicable PCB board thickness: |
Substrate thickness：0.8～3 mm / Pin length：3mm |
Component height: |
Less than 100mm above the substrate / Less than 50mm below the substrate |
Substrate shape and conditions: |
1. Substrate placement edge: more than 3mm from the substrate process edge. \ n2. The weight including components is 5KG The following 3. Substrate bending: less than 0.5mm |
Tin furnace: |
Tin furnace material/capacity: All-titanium alloy material / 12KG Tin bath capacity: Power: 4*500W, 2KW |
Preheating power: |
Infrared preheating 1KW |
Total power: |
AC 220V 3.5KW |
N2 Requirements: |
Nitrogen purity：99.999% Pressure/Consumption：0.5MPa / 20ℓ/min～30ℓ/min / 1.2 cubic meters |
Flux nozzle: |
0.5mm precision fluid nozzle imported from Japan |
Flux capacity: |
2 L |
Gas source: |
0.5-0.7Mpa |
Applicable PCB board size: |
L*W : 50×50～320×250 mm |
Applicable PCB board size Applicable PCB board thickness: |
Substrate thickness：0.8～3 mm / Pin length：3mm |
Component height: |
Less than 100mm above the substrate / Less than 50mm below the substrate |
Substrate shape and conditions: |
1. Substrate placement edge: more than 3mm from the substrate process edge. \ n2. The weight including components is 5KG The following 3. Substrate bending: less than 0.5mm |
Tin furnace: |
Tin furnace material/capacity: All-titanium alloy material / 12KG Tin bath capacity: Power: 4*500W, 2KW |
Preheating power: |
Infrared preheating 1KW |
Total power: |
AC 220V 3.5KW |
N2 Requirements: |
Nitrogen purity：99.999% Pressure/Consumption：0.5MPa / 20ℓ/min～30ℓ/min / 1.2 cubic meters |
Flux nozzle: |
0.5mm precision fluid nozzle imported from Japan |
Flux capacity: |
2 L |
Gas source: |
0.5-0.7Mpa |
Selective wave soldering working mode
During offline selective welding,The welding nozzle is fixed.The PCB board is set
Move in the X,Y, and Z axes to achieve the soldering of PCB solder joints.

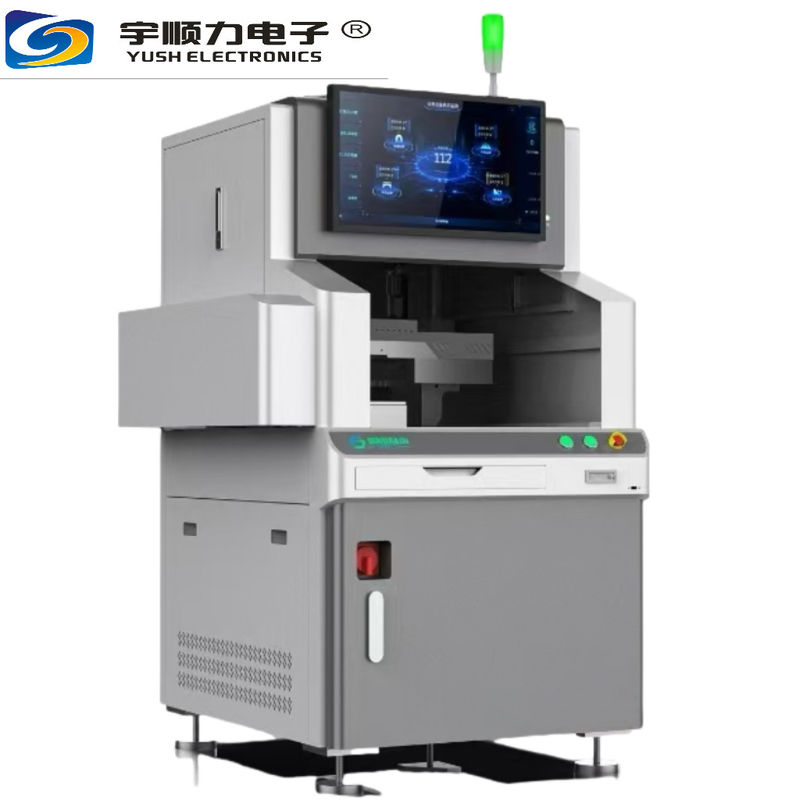

Integrated selective wave soldering
|
Specification items |
YS-320Y/ YS-320YT |
|
Applicable PCB board size |
L*W : 50×50～320×250 mm |
|
Applicable PCB board thickness |
Substrate thickness:0.8～3 mm / Pin length:within 3mm |
|
Component height |
Less than 100mm above the substrate / Less than 50mm below the substrate |
|
Substrate shape and conditions |
1. Substrate placement edge: more than 3mm from the substrate process edge. n2. The weight including components is 5KG The following 3. Substrate bending: less than 0.5mm |
|
Tin furnace |
Tin furnace material/capacity: All-titanium alloy material / 12KG Tin bath capacity: Power: 4*500W, 2KW |
|
Preheating power |
Infrared preheating 1KW |
|
Total power |
AC 220V 3.5KW |
|
N2 Requirements |
Nitrogen purity:99.999% Pressure/Consumption:0.5MPa / 20ℓ/min～30ℓ/min / 1.2 cubic meters |
|
Flux nozzle |
0.5mm precision fluid nozzle imported from Japan |
|
Flux capacity |
2 L |
|
Gas source |
0.5-0.7Mpa |
|
Nozzle inner diameter |
φ 3mm~φ 20mm Customizable size |
|
Peak height |
Automatic alignment/height measurement |
|
System control |
PC+PLC(windows+Huichuan) |
|
Programming software |
Support programming for online or offline image production |
|
Video surveillance |
Real-time video monitoring makes it convenient to watch the welding effect |
|
Power supply/power |
Single-phase 220V±10 Starting power:3.5KW |
|
Weight |
120KG (Containing solder12KG) |
|
YS-320YExternal dimensions |
L*W*H 910×980×1350 mm (With a display) |
|
YS-320YTExternal dimensions |
L*W*H 910×980×1500 mm (Including the upper cover) |
Comparison of conventional production equipment
|
Project |
Ordinary wave soldering |
Soldering iron robot |
Selective welding machine |
|
| |
|
|
||
| 1 |
Production application scope |
Mass production/conventional process |
Small-batch welding/simple process |
Small batch/multiple models The welding quality requirements are high |
| 2 |
Multilayer circuit board Through-hole tin permeability
|
50% |
80% |
99.99% |
| 3 |
Tin bath capacity |
400-500kg |
Soldering wire |
12KG |
| 4 |
The amount of solder slag produced in 8 hours |
5～8 KG |
0.5 KG |
0.2 KG |
