รายละเอียดสินค้า
Place of Origin: Jiangsu
ชื่อแบรนด์: Yushunli
ได้รับการรับรอง: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: YSL-250SS
เงื่อนไขการชำระเงินและการจัดส่ง
Minimum Order Quantity: 1 set
ราคา: USD 3000
Packaging Details: Plywooden case
Delivery Time: 3 days to 7days
Payment Terms: T/T ,Paypal ,West Union ,L/C ,D/P .
Supply Ability: 300 sets/ month
External dimension: |
1130*1500*1660mm |
PCB specification: |
L330*W250 |
air source: |
0.4-0.6MPa |
power supply: |
single -phase 220V 50Hz |
specification of Magazine: |
(W) 320*(L）355*（H）570mm |
External dimension: |
1130*1500*1660mm |
PCB specification: |
L330*W250 |
air source: |
0.4-0.6MPa |
power supply: |
single -phase 220V 50Hz |
specification of Magazine: |
(W) 320*(L）355*（H）570mm |

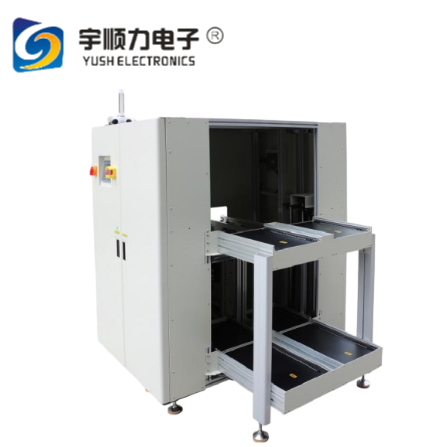

High Quality /High Efficiency Double-track plate feeder For SMT Production Line YSL-250SS
Technical parameter
|
External dimension:1130*1500*1660mm |
|
Special national standard frosted aluminum profile guide rail and special thousand-bird plastic chain |
|
90W Taiwan's special right-angle motor drives the ball screw to make the Magazine step up and down |
|
Y a d e k e p n e u m a t i c c l a m p s t r u c t u r e |
|
The specification of Magazine is(W)320*(L)355*(H)570mm |
|
PCB specification is L330*W250 |
|
Lift platform pitch selection is 10.20.30.40.50 |
|
Huichuan PLC programmable controller control |
|
Power supply:single-phase 220V50HZ |
|
A i r s o u r c e ; 0 . 4 - 0 . 6 M P a |
