รายละเอียดสินค้า
สถานที่กำเนิด: กวางตุ้ง
ชื่อแบรนด์: YUSH

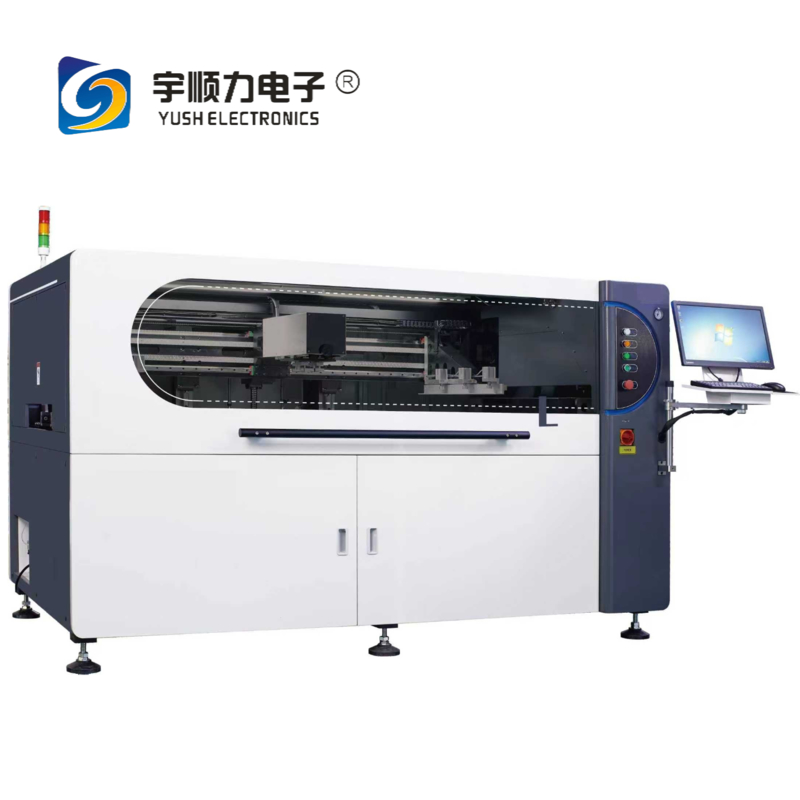

หมายเลขรุ่น: YSL-12
เงื่อนไขการชำระเงินและการจัดส่ง
จำนวนสั่งซื้อขั้นต่ำ: 1
ราคา: USD 30000
เวลาการส่งมอบ: 20 วันทำงาน
เงื่อนไขการชำระเงิน: L/C, D/A, D/P, T/T, Western Union
สามารถในการผลิต: 1,000
แบบอย่าง: |
YSL-12 |
น้ำหนัก: |
1500 กิโลกรัม |
ขนาดนาที: |
520*300 มม. |
ขนาดสูงสุด: |
1500*750มม |
แบบอย่าง: |
YSL-12 |
น้ำหนัก: |
1500 กิโลกรัม |
ขนาดนาที: |
520*300 มม. |
ขนาดสูงสุด: |
1500*750มม |
| Screen Frames | |
|---|---|
| Min Size | 520x300MM |
| Max Size | 1500X750MM |
| Thickness | 20-40MM |
| Stencil Position Mode | Manual positioning |
| PCB Min Size | 50x50mm |
| PCB Max Size | 1200x350mm |
| PCB Thickness | 0.4-6mm |
| PCB Warpage | <1% |
| PCB Board Edge Clearance | 2.5mm |
| Board Height | 25mm |
| Transport Height | 900±40mm |
| Transport Speed | Max 1500mm/S Programmable |
| Transport Mode | One section transportation track |
| Maximum PCB Board Weight | 7kg |
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right |
| Printing Speed | 10-200mm/sec |
| Printing Pressure | 0.5-25kg |
| Printing Mode | Single or double squeegee printing |
| Release Distance | 0-20mm |
| Snap-Mode | Three stage demolding |
| Squeegee Type | Rubber squeegee/Steel squeegee |
| Release Speed | 0-20mm/sec |
| Repeat Position Accuracy | ±0.015mm |
| Printing Accuracy | ±0.025mm |
| Cycle Time (Excluding Cleaning) | <15 (Exclude Printing&Cleaning) |
| Changeover Time | <5Min |
| Cleaning Stroke | Automatic generation |
| Cleaning Position | Right cleaning |
| Cleaning Speed | 10~200mm/sec |
| Cleaning Fluid Consumption | Auto&Manually adjustable |
| Cleaning Paper Consumption | Auto&Manually adjustable |
| CCD FOV | 10*8mm |
| Camera Type | 130 megapixel digital camera |
| Camera System | Lock up/down option structure |
| Camera Cycle Time | 150ms |
| Mark size | 0.1~6mm |
| Stay Away Number | Max:1pcs |
| Mark Number | Max:4pcs |
| 2D Detection | Detect low tin/missing print/continuous tin |
| Safely Control | Door open to stop, abnormal alarm |
| Smart UI | Brand new interface, shortcut key operation |
| Permission Setting | It can be freely set, and the authority division of operators, technicians and engineers can be set |
| Standard MES System | Customized output of Industry 4.0 solutions, can record SOP and equipment open data, and upload |
| SPI Connection | Automatic compensation for offset and detection of less tin, Automatic cleaning of steel mesh |
| Traceability System | Camera scan code, size compatible: 2.5*2.5-8.*8mm |
| Machine Weight | 1500kg |
| Main Power Supply | AC:220±10v;50/60Hz,3.5KW,with stable current and power supply |
| Ground Wire | The equipment needs to be grounded separately by pulling a grounding wire |
| Plug Type | English SS145(13A) |
| Main Air Supply Source | 4.0-6qf/cm?industrial gas source, with a straight airway diameter of 8mm |
| Working Temperature | -20℃-45℃ |
| Working Environment Humidity | 30%~60% |
| Electrostatic Protection | ESD grounding electrostatic protection |
